Air / Material Separators

Cyclones

For separation of material from conveying air at material outlet points in pneumatic conveying lines

Cyclones use vortex separation to remove dust, fines, and particulates from the air stream in a pneumatic system. This method of separation is highly efficient for separating dense materials from lighter waste and has low maintenance requirements due to the lack of moving parts.

Features

Kongskilde cyclones for pneumatic systems

Kongskilde offers a wide variety of cyclones specially designed for use with Kongskilde OK pipe systems.

KM Series Cyclones

The Kongskilde KM series of cyclones are designed for the separation of dust and particles from the air. The KM range of cyclones can handle volumes from 1000 m³/h (590 cfm) to 35000 m³/h (20000 cfm).

IC, SC, UC, and RC Series Cyclones

The IC, SC, UC, and RC series of cyclones are designed as suction and outlet cyclones for pneumatic conveying and for separation of dust from air. The IC, SC, UC and RC range of cyclones can handle volumes up to 5,500 m³/h (3,300 cfm).

Downloads

Downloads

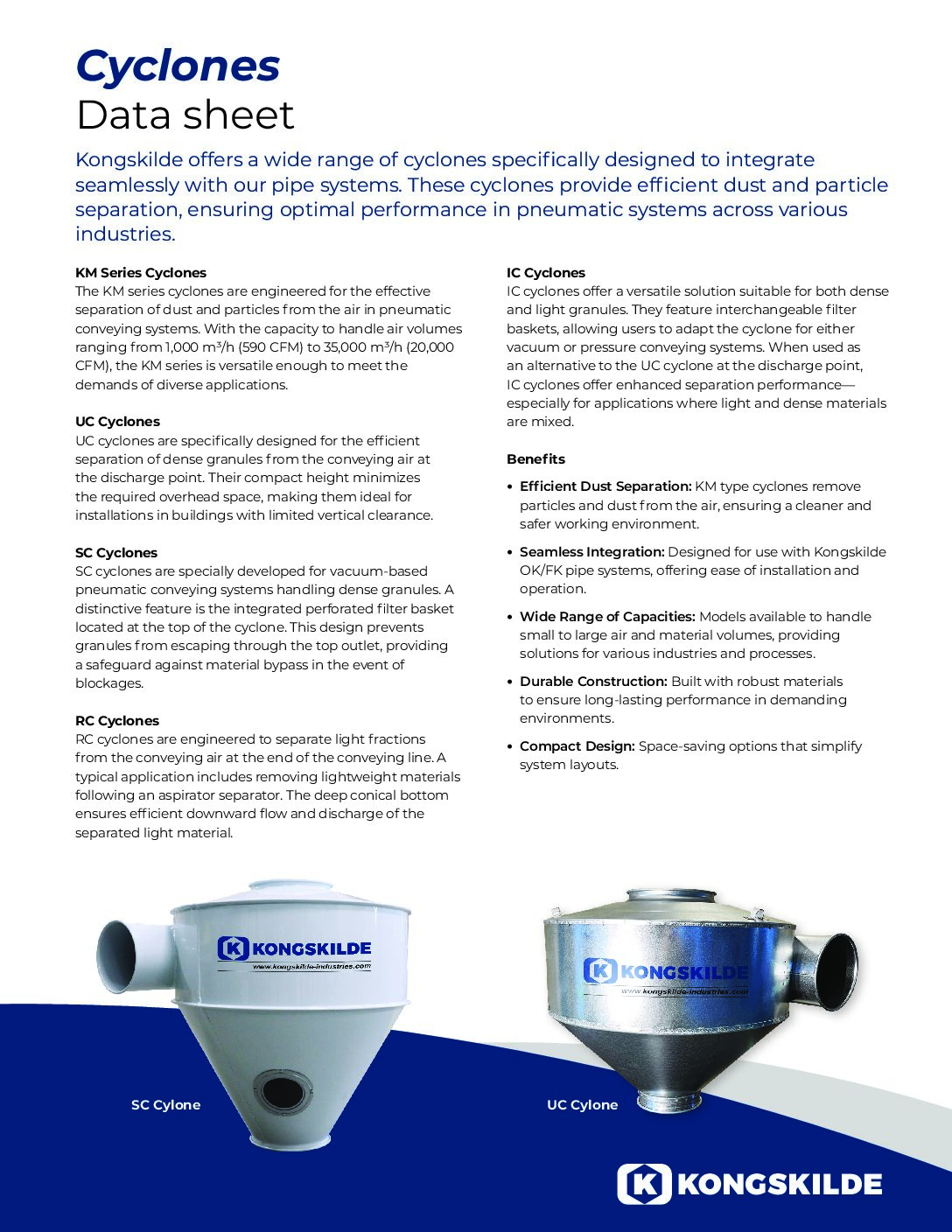

Download data sheets for Kongskilde Cyclones.

Compare Models

Cyclone Model Comparison

Compare available Cyclone models. Visit the downloads section for additional technical information.

KM20KM35KM50KM65KM100KM130KM160KM180
Weight [kg]495970115270565685875
Standard inlet/length, mmFK140/242OK160/242OK200/242Ø300/392Ø400/392Ø600/492Ø700/592Ø900/600
