Air / Material Separators
Cyclones
For separation of material from conveying air at material outlet points in pneumatic conveying lines
Cyclones use vortex separation to remove dust, fines, and particulates from the air stream in a pneumatic system. This method of separation is highly efficient for separating dense materials from lighter waste and has low maintenance requirements due to the lack of moving parts.
Features
Downloads
Compare Models
Video
Features
Kongskilde cyclones for pneumatic systems
Kongskilde offers a wide variety of cyclones specially designed for use with Kongskilde OK pipe systems.
KM Series Cyclones
The Kongskilde KM series of cyclones are designed for the separation of dust and particles from the air. The KM range of cyclones can handle volumes from 1000 m³/h (590 cfm) to 35000 m³/h (20000 cfm).

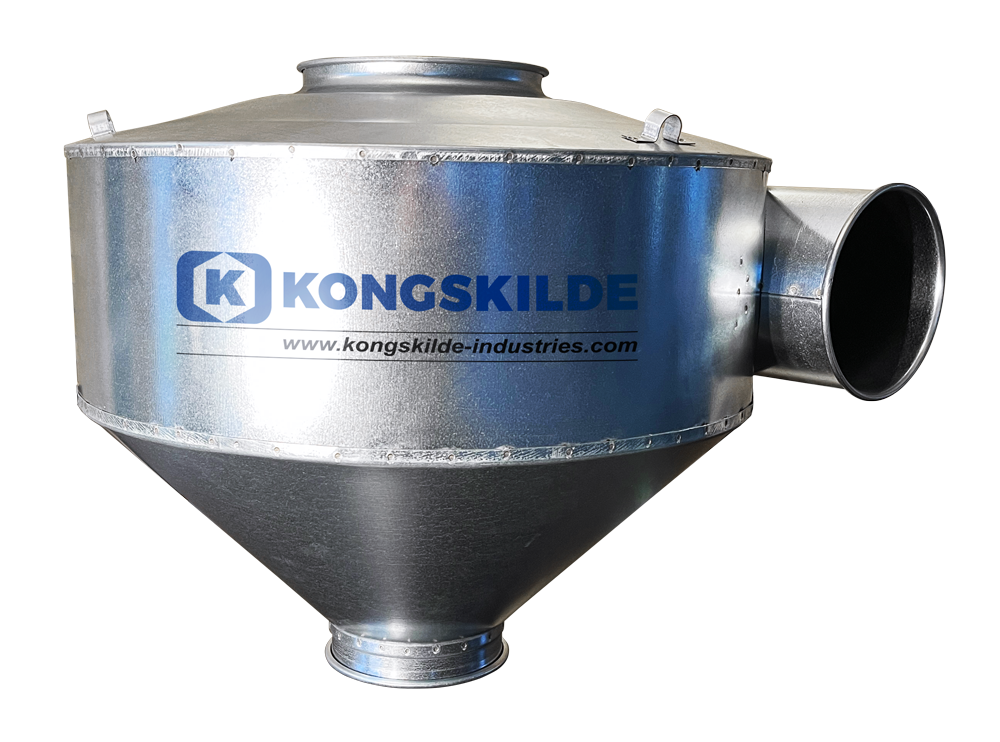

IC, SC, UC, and RC Series Cyclones
The IC, SC, UC, and RC series of cyclones are designed as suction and outlet cyclones for pneumatic conveying and for separation of dust from air. The IC, SC, UC and RC range of cyclones can handle volumes up to 5,500 m³/h (3,300 cfm).
Downloads
Downloads

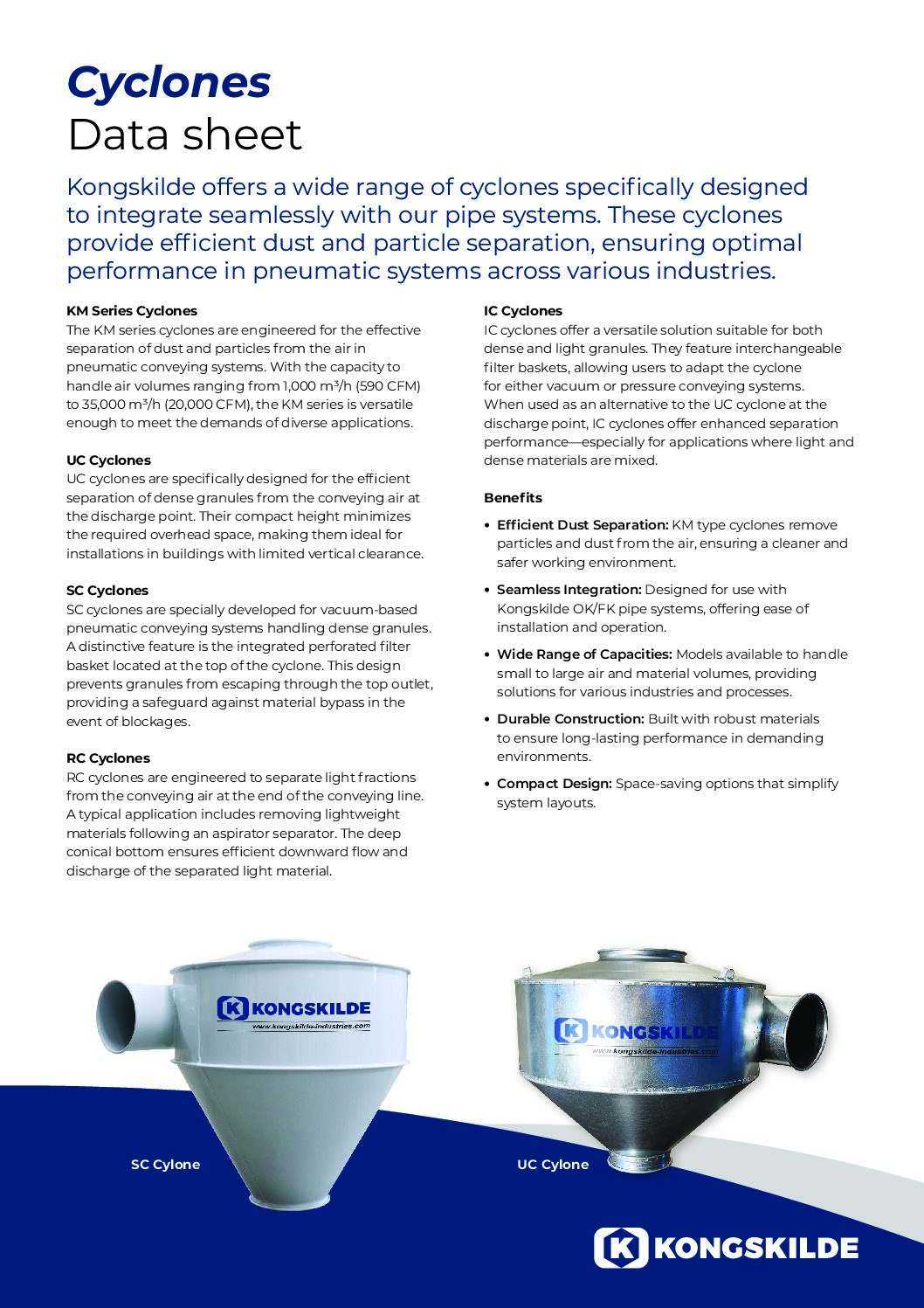

Download data sheets for Kongskilde Cyclones.
Compare Models
Cyclone Model Comparison
Compare available Cyclone models. Visit the downloads section for additional technical information.
| KM20 | KM35 | KM50 | KM65 | KM100 | KM130 | KM160 | KM180 | |
|---|---|---|---|---|---|---|---|---|
| Weight [kg] | 49 | 59 | 70 | 115 | 270 | 565 | 685 | 875 |
| Standard inlet/length, mm | FK140/242 | OK160/242 | OK200/242 | Ø300/392 | Ø400/392 | Ø600/492 | Ø700/592 | Ø900/600 |
