CAD40G
Rotary valve CAD 40
Pneumatic Conveyors
Rotary Valves – CAD/CAE
Kongskilde’s pneumatic rotary valves, including the CAD and CAE models, provide a sophisticated solution for introducing grain into pneumatic conveying systems.
These valves facilitate the efficient movement of grain along pipelines in both pressure and suction conveying systems, optimizing the transfer process with precision and reliability.
Designed for larger capacities, the CAD and CAE rotary valves enhance system performance and are critical components in modern agricultural and industrial operations.
Features
Downloads
Compare Models
Features
How Kongskilde Rotary Valves Work
Kongskilde rotary valves operate by utilizing a motor-driven mechanism that rotates polyurethane or rubber paddles to regulate the flow of materials into conveying systems. These valves act as airlocks, maintaining the necessary pressure differential in the system, which is essential for the continuous and controlled discharge of materials from cyclones or filter units into the conveying line. This method significantly increases the capacity over simpler solutions like injectors, making it suitable for handling larger volumes of material efficiently.
Benefits of Kongskilde Rotary Valves
- Increased Conveying Capacity: Designed to handle large volumes, these valves ensure a smooth and continuous flow of materials.
- Air Loss Prevention: Equipped with rubber paddles that provide an excellent seal, minimizing air loss during operation.
- Low Maintenance: The valves are constructed with durability in mind, requiring minimal upkeep thanks to wear-resistant materials.
- Clog Minimization: Rubber paddles are flexible, which helps to prevent material clogging and ensures consistent operation.
Downloads
Downloads

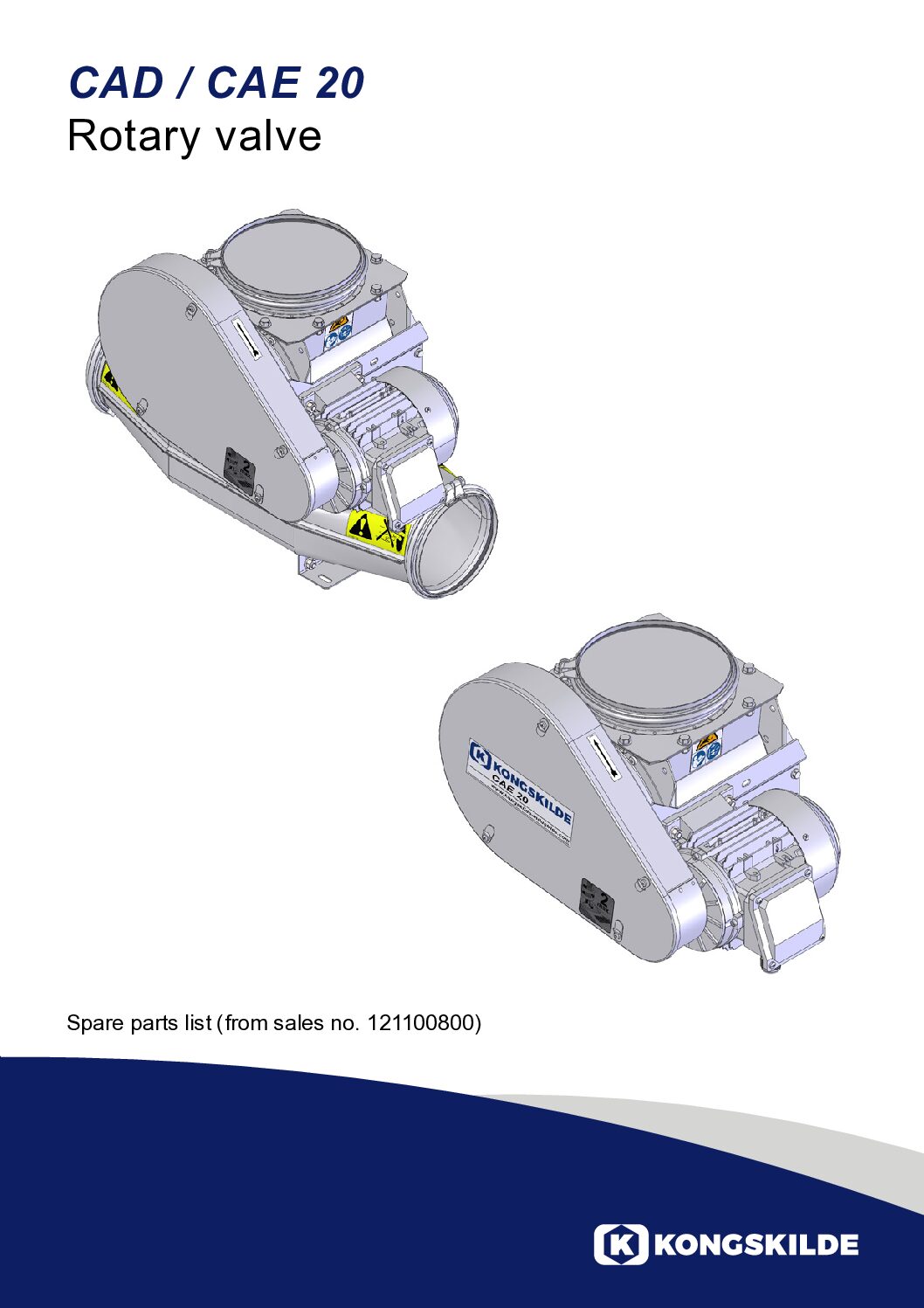

Download brochures, manuals, and spare parts lists for the CAD/CAE rotary valves.
Brochures
Manuals
Spare Parts
Compare Models
Compare Rotary Valve Models
Compare available Rotary Valve models. Visit the downloads section for more information on specific models.
| Technical specifications | Capacity t/hour 700 kg/m3 | Motor kW/hp | Weight kg | Connection Top/Bottom |
|---|---|---|---|---|
| CAD 20 | 16 | 0.55/0.75 | 45 | OK 200/OK 160 |
| CAD 30-G | 38 | 1.5/2.0 | 84 | OK 200/OK 160 |
| CAD 40-G | 60 | 1.5/2.0 | 87 | OK 200/OK 160 |
| CAE 20 | 16 | 0.55/0.75 | 34 | OK 200/#200/*OK 200 |
| CAE 30-G | 38 | 1.5/2.0 | 73 | OK 200/#250/*OK 200 |
| CAE 40-G | 60 | 1.5/2.0 | 76 | OK 200/#250/*OK 200 |
| CAD 50 | 94 | 1.5/2.0 | 150 | OK 375/OK 160 |
Rotary Valve CAD/CAE Applications
Kongskilde’s CAD/CAE rotary valves are essential for operations seeking to optimize their conveying systems with a reliable, efficient, and low-maintenance solution capable of handling significant capacities.
